FE 169-5-6180 Telescopic Cylinders For Dump Truck

group name: FE Type Telescopic Cylinders

Min Order: 20 piece

brand name: Zhongxin+Hydraulic Cylinders+Manufacturer

model: FE169-5-5375; FE191-5-6125;FE 149-4-4280;FE 169-5-6180

Nearest port for product export: Qingdao

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, Westem Union, Cash

update time: Sun, 29 Sep 2024 10:18:25 GMT

contact supplier

Packging & Delivery

Min Order20 piece

Briefing

Replace Hyco, Parker, and Custom Hoist, Hyva,Edbro telescopic hydraulic cylinders.Accept sample order and OEM service.

Detailed

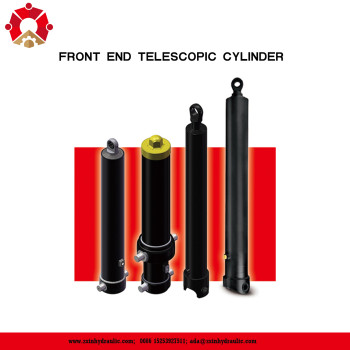

Front End Cylinders With Eye

Zhongxin Hydraulic offers different type of front end cylinders for agricultural dump trailers and for other light and medium duty commercial vehicle applications.

Product Feature

1. To guarantee stable and reliable quality by advanced machining technology and Reasonable design scheme.

2. the material with better mechanical property to guarantee stronger lifting capacity.

3. Ensure the best product performance by world famous seal kits.

4. Highly improved anti-corrosion and wear resisting property with high-end chrome plating production line.

5.Stroke 900mm-12000mm, up to 8 stages.

6.1. working pressure up to 3500psi.

7. lifting capacity can be 120ton by reasonable lifting way.

8. lifting capacity can be about 300 ton for special mine Hydraulic cylinders.

9.All stage Diameter:

214/191/169/149/129/110/91/72/(53)

(226)/202/179/157/137/118/99/80/63

221/196/172/150/129/110/91/72/（53）

206/182/160/140/120/100/80/63/（46）

MODEL	PRESSURE (bar)	Max. thrust (KN)	B1	C	I	J	K	M	R	L	T	U	V	Y	Z
FE 110-3-3205	190	180.5	163	130	60	91	1449	100	52	160	G1	60	65	50	42
FE 110-3-3460	190	180.5	163	130	60	91	1609	100	52	160	G1	60	65	50	42
FE 129-3-3460	190	248.2	201	150	60	91	1449	100	52	160	G1	60	65	50	42
FE 129-3-3880	190	248.2	201	150	60	91	1609	100	52	160	G1	60	65	50	42
FE 149-3-2900	190	331.2	201	170	60	96	1320	135	52	160	G1	60	65	50	42
FE 149-3-3200	190	331.2	201	170	60	96	1420	135	52	160	G1	60	65	50	42
FE 149-3-3500	190	331.2	201	170	60	96	1520	135	52	160	G1	60	65	50	42
FE 149-3-3880	190	331.2	201	170	60	96	1644	135	52	160	G1	60	65	50	42
FE 149-3-4280	190	331.2	201	170	60	96	1777	135	52	160	G1	60	65	50	42
FE 149-4-4280	190	331.2	201	170	60	96	1450	160	52	160	G1	60	65	50	42
FE 149-4-4620	190	331.2	201	170	60	96	1484	135	52	160	G1	60	65	50	42
FE 149-4-4940	190	331.2	201	170	60	96	1529	100	52	160	G1	60	65	50	42
FE 169-4-4280	190	426	245	192	65	106	1394	135	52	160	G1	60	65	50	42
FE 169-4-4620	190	426	245	192	65	106	1479	135	52	160	G1	60	65	50	42
FE 169-4-4940	190	426	245	192	65	106	1529	100	52	160	G1	60	65	50	42
FE 169-4-5180	190	426	245	192	65	106	1604	100	52	160	G1	60	65	50	42
FE 169-5-5355	190	426	245	192	65	106	1394	100	52	160	G1	60	65	50	42
FE 169-5-5780	190	426	245	192	65	106	1459	100	52	160	G1	60	65	50	42
FE 169-5-6180	190	426	245	192	65	106	1497	100	52	160	G1	60	65	50	42
FE 169-5-6830	190	426	245	192	65	106	1674	100	52	160	G1	60	65	50	42
FE 169-5-7130	190	426	245	192	65	106	1734	100	52	160	G1	60	65	50	42
FE 169-5-7630	170	381.2	245	192	65	106	1834	100	52	160	G1	60	65	50	42
FE 169-5-8130	170	381.2	245	192	65	106	1934	100	52	160	G1	60	65	50	42
FE 191-5-6180	190	544.1	245	215	70	116	1527	100	52	160	G1	60	65	50	42
FE 191-5-7130	190	544.1	245	215	70	116	1717	100	52	160	G1	60	65	50	42
FE 191-5-7630	190	544.1	245	215	70	116	1817	100	52	160	G1	60	65	50	42
FE 191-5-9030	150	429.6	245	215	70	116	2177	100	52	160	G1	60	65	50	42
FE 214-5-7130	190	683	270	240	85	135	1722	100	62	160	G1	65	65	60	52
FE 214-5-7630	170	611.1	270	240	85	135	1857	100	62	160	G1	65	65	60	52
