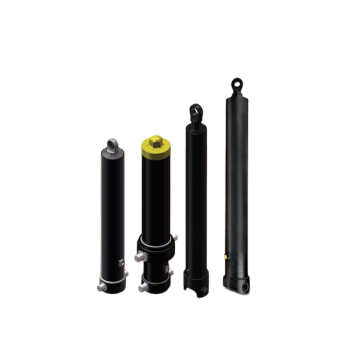

FC149-4-4280 Telescopic Cylinders For Dump Truck

FC149-4-4280 Telescopic Cylinders For Dump Truck
FC149-4-4280 Telescopic Cylinders For Dump TruckFC149-4-4280 Telescopic Cylinders For Dump TruckFC149-4-4280 Telescopic Cylinders For Dump Truck
FOB Price

US $300.001 - 10 piece

group name
FC Type Telescopic Cylinders
Min Order
10 piece
brand name
Zhongxin+Hydraulic Cylinders+Manufacturer
model
FC149-4-4280
Nearest port for product export
Qingdao
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FCA, Express Delivery
Acceptable payment methods
T/T, L/C, D/P D/A, Westem Union, Cash
update time
Sun, 29 Sep 2024 10:08:18 GMT
contact supplier

Packging & Delivery

  • Min Order10 piece

Briefing

FC Telescopic cylinders are designed to be 100% interchangebale with many brands such as Hyva@ ,Parker@, Mailhot@

Detailed

Telescopic Cylinders With Outer Cover
Product Feature

1. To guarantee stable and reliable quality by advanced machining technology and Reasonable design scheme.

2. the material with better mechanical property to guarantee stronger lifting capacity.

3. Ensure the best product performance by world famous seal kits.

4. Highly improved anti-corrosion and wear resisting property with high-end chrome plating production line.

5.Stroke 900mm-12000mm, up to 8 stages.

6. working pressure up to 3500psi.

7.  lifting capacity can be 120ton by reasonable lifting way

8. lifting capacity can be about 300 ton for special mine Hydraulic cylinders.

9.All stage Diameter:

214/191/169/149/129/110/91/72/(53)

(226)/202/179/157/137/118/99/80/63

221/196/172/150/129/110/91/72/（53）

206/182/160/140/120/100/80/63/（46）

dimensions L1# L2# L3# D1 D2
FC 129 410 out 141 in 261 in 60 60
FC 149 410 out 141 in 261 in 60 60
FC 169 410 out 211 out 331 out 60 60
FC 191 410 in 211 out 331 out 60 60
FC 214 410 in 211 in 331 in 60 65
MODEL PRESSURE
(bar)		 Max. thrust (KN) A B C D H I J K L T U V W X
FC 129-3-3460 190 248.2 340 201 151 219 1484 60 91 343 160 1''SAE 60 65 60 65
FC 129-3-3880 190 248.2 340 201 151 219 1644 60 91 343 160 1''SAE 60 65 60 65
FC 129-3-4270 190 248.2 340 201 151 219 1744 60 91 343 160 1''SAE 60 65 60 65
FC 129-4-4280 190 248.2 340 201 151 219 1339 60 91 343 160 1''SAE 60 65 60 65
FC 129-4-4620 190 248.2 340 201 151 219 1484 60 91 343 160 1''SAE 60 65 60 65
FC 129-4-5180 190 248.2 340 201 151 219 1644 60 91 343 160 1''SAE 60 65 60 65
FC 149-3-3880 190 331.2 340 201 171 245 1644 60 96 343 160 1''SAE 60 65 60 65
FC 149-3-4270 190 331.2 340 201 171 245 1774 60 96 343 160 1''SAE 60 65 60 65
FC 149-4-4280 190 331.2 340 201 171 245 1399 60 96 343 160 1''SAE 60 65 60 65
FC 149-4-4620 190 331.2 340 201 171 245 1484 60 96 343 160 1''SAE 60 65 60 65
FC 149-4-4940 190 331.2 340 201 171 245 1564 60 96 343 160 1''SAE 60 65 60 65
FC 149-4-5180 190 331.2 340 201 171 245 1644 60 96 343 160 1''SAE 60 65 60 65
FC 149-4-5460 190 331.2 340 201 171 245 1714 60 96 343 160 1''SAE 60 65 60 65
FC 169-4-4280 190 426 340 245 192 245 1394 65 106 343 160 1''SAE 60 65 60 65
FC 169-4-4620 190 426 340 245 192 245 1479 65 106 343 160 1''SAE 60 65 60 65
FC 169-4-4940 190 426 340 245 192 245 1559 65 106 343 160 1''SAE 60 65 60 65
FC 169-4-5180 190 426 340 245 192 245 1639 65 106 343 160 1''SAE 60 65 60 65
FC 169-4-5460 190 426 340 245 192 245 1709 65 106 343 160 1''SAE 60 65 60 65
FC 169-5-5355 190 426 340 245 192 245 1394 65 106 343 160 1''SAE 60 65 60 65
FC 169-5-5780 190 426 340 245 192 245 1479 65 106 343 160 1''SAE 60 65 60 65
FC 169-5-6180 190 426 340 245 192 245 1559 65 106 343 160 1''SAE 60 65 60 65
FC 169-5-6830 190 426 340 245 192 245 1709 65 106 343 160 1''SAE 60 65 60 65
FC 169-5-7130 190 426 340 245 192 245 1769 65 106 343 160 1''SAE 60 65 60 65
FC 169-5-7630 170 381.2 340 245 192 245 1899 65 106 343 160 1''SAE 60 65 60 65
FC 169-5-8130 170 381.2 340 245 192 245 1999 65 106 343 160 1''SAE 60 65 60 65
FC 169-5-9030 150 336.3 340 245 192 245 2209 65 106 343 160 1''SAE 60 65 60 65
FC 169-5-9530 135 302.7 340 245 192 245 2309 65 106 343 160 1''SAE 60 65 60 65
FC 191-4-5460 190 544.1 360 245 215 273 1712 70 116 343 160 1''SAE 60 65 60 65
FC 191-5-5780 190 544.1 360 245 215 273 1482 70 116 343 160 1''SAE 60 65 60 65
FC 191-5-6180 190 544.1 360 245 215 273 1562 70 116 343 160 1''SAE 60 65 60 65
FC 191-5-7130 190 544.1 360 245 215 273 1772 70 116 343 160 1''SAE 60 65 60 65
FC 191-5-7630 190 544.1 360 245 215 273 1902 70 116 343 160 1''SAE 60 65 60 65
FC 191-5-8130 190 544.1 360 245 215 273 2002 70 116 343 160 1''SAE 60 65 60 65
FC 191-5-9030 170 486.8 360 245 215 273 2212 70 116 343 160 1''SAE 60 65 60 65
FC 191-5-9530 150 430 360 245 215 273 2312 70 116 343 160 1''SAE 60 65 60 65
FC 214-5-9030 170 611.1 360 270 242 273 2197 85 135 343 160 1''SAE 65 65 60 65
FC 214-5-9530 150 539.2 360 270 242 273 2297 85 135 343 160 1''SAE 65 65 60 65
FC 214-5-12200 150 539.2 360 270 242 273 2967 85 135 343 160 1''SAE 65 65 60 65
