Ram 2-Stage x 28in

group name: Agricultural Trailer 2 and 3 Stage Tipping Rams

Min Order: 10 piece

brand name: Zhongxin+Hydraulic Cylinders+Manufacturer

model: G3943;G3948;G3949;G19658;G18993;G3950;G18225;G3950A;G17677;G16578;G18196

Nearest port for product export: Qingdao

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FCA, Express Delivery

Acceptable payment methods: T/T, L/C, D/P D/A, Westem Union, Cash

update time: Sun, 29 Sep 2024 09:49:34 GMT

contact supplier

Packging & Delivery

Min Order10 piece

Briefing

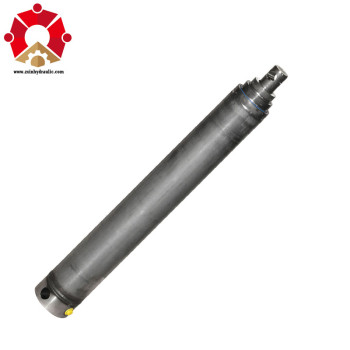

Replacement 2 Stage and 3 Stage Hydraulic Ram for a Fleming TR1 Trailer

Detailed

2 and 3 Stages Agricultural Tipping Rams

Product Description

Feature:

Single-acting Typically pin mounted Provision for grease nipples at both ends Headed gland nuts for reducing servicing downtime Zinc plated glands nuts for added corrosion resistance Double lipped asymmetric piston seal design manufactured in high-performance polyurethane Heavy-duty wiper ring featuring a front flap that covers the gland face preventing a water/slurry trap so common with conventional wiper Piston bearing rings: all pistons fitted with two bearings to give maximum internal support, manufactured to very tight tolerances and made from woven fabric reinforced with a polyester resin Gland bearing rings: all gland nuts fitted with 30/40mm long hard-wearing Acetal bearing strip.

Detailed Pictures

Stage	Part No	Stage Tonnage’s	Close	Stroke	E	D	Rod	H/S	T
2 Stage	60-2-700	4/2	533	700	20.25	70	32	38	3/8 BSP
	60-2-953	4/2	660	953	20.25	70	32	38	3/8 BSP
	60-2-1107	4/2	737	1107	20.25	70	32	38	3/8 BSP
	75-2-1070	7/4	735	1070	25.8	90	45	45	1/2 BSP
	75-2-1384	7/4	914	1384	25.8	90	45	67	1/2 BSP
	75-2-1372	7/4	920	1372	25.8	90	45	79	1/2 BSP
	75-2-830	7/4	610	830	25.8	90	45	40	1/2 BSP
	75-2-953	7/4	660	953	25.8	90	45	28.5	1/2 BSP
	75-2-700	7/4	555	700	25.8	90	45	50	1/2 BSP
	75-2-2434	7/4	1422	2434	25.8	90	45	50	1/2 BSP
	75-2-1258	7/4	812.5	1258	25.8	90	45	28.5	1/2 BSP
	75-2-600	7/4	500	600	25.8	90	45	45	1/2 BSP
	95-2-1375	10/5	876	1375	25.8	105	45	45	1/2 BSP
	95-2-969	10/5	673	969	25.8	105	45	45	1/2 BSP
	95-2-1384	10/5	914	1384	25.8	105	45	78.5	1/2 BSP
	95-2-1753	10/5	1067	1753	25.8	105	45	47	1/2 BSP
	95-2-1587	10/5	978	1587	25.8	105	45	41	1/2 BSP
	95-2-1746	10/5	1102	1746	25.8	105	45	85.5	1/2 BSP
	95-2-1321	10/5	876	1321	25.8	105	45	72	1/2 BSP
	95-2-1035	10/5	711	1035	25.8	105	45	50	1/2 BSP
	95-2-1867	10/5	1156	1867	25.8	105	45	79	1/2 BSP
	95-2-729	10/5	553	729	25.8	105	45	45	1/2 BSP
	95-2-820	10/5	610	820	25.8	105	45	56.5	1/2 BSP
	110-2-2141	12/8	1280	2141	32.5	120	50	47	1/2 BSP
	110-2-1727	12/8	1067	1727	32.5	120	50	41	1/2 BSP
	110-2-1403	12/8	914	1403	32.5	120	50	50	1/2 BSP
	110-2-1075	12/8	775	1075	32.5	120	50	75	1/2 BSP
	110-2-997	12/8	711	997	32.5	120	50	50	1/2 BSP
	110-2-1607	12/8	1016	1607	32.5	120	50	50	1/2 BSP
3 Stage	95-3-1993	10/7/4	924	1993	25.8	105	45	72	1/2 BSP
	95-3-1894	10/7/4	876	1894	25.8	105	45	57	1/2 BSP
	95-3-2299	10/7/4	1026	2299	25.8	105	45	57	1/2 BSP
	95-3-1420	10/7/4	711	1420	25.8	105	45	50	1/2 BSP
	95-3-1566	10/7/4	759	1566	25.8	105	45	49.5	1/2 BSP
	95-3-2023	10/7/4	1067	2023	25.8	105	45	60	1/2 BSP
	95-3-1726	10/7/4	813	1726	25.8	105	45	50	1/2 BSP
	95-3-2563	10/7/4	1092	2563	25.8	105	45	50	1/2 BSP
	110-3-2821	12/8/5	1245	2821	32.5	120	50	109	1/2 BSP
	110-3-2032	12/8/5	914	2032	32.5	120	50	41	1/2 BSP
	110-3-2449	12/8/5	1092	2449	32.5	120	50	80	1/2 BSP
	110-3-2323	12/8/5	1016	2323	32.5	120	50	46	1/2 BSP
	110-3-2992	12/8/5	1245	2992	32.5	120	50	52	1/2 BSP
