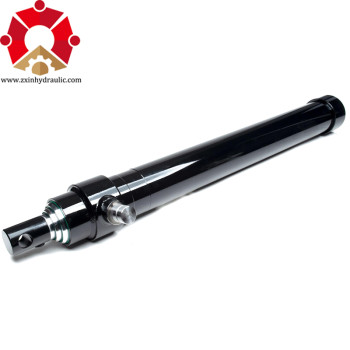

7 Ton Single Acting Telescopic Hydraulic Cylinder,3 Stage, 78 in Stroke
- group name
- 7 Ton and 12 Ton Telescopic Cylinders
- Min Order
- 30 piece
- brand name
- Zhongxin+Hydraulic Cylinders+Manufacturer
- model
- 07833
- Nearest port for product export
- Qingdao
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, Express Delivery
- Acceptable payment methods
- T/T, L/C, D/P D/A, Westem Union, Cash
- update time
- Mon, 09 Sep 2024 14:21:01 GMT
Paramtents
Stroke 78"
PSI 2500
Weight 75LBS
Mounting Trunnion
Stages Three
Action Single Acting
Packging & Delivery
- 120cm x90cm x100cm
-
Min Order30 piece
Briefing
7 Ton 78" Stroke Single Acting Telescopic Cylinder 2500 PSI, 3”Sections,7"Space, 1/2" NPT Port Size with 1" Pin Dia
Detailed
7 Ton and 12 Ton Inverted Telescopic Cylinders
Product Feature
1.Ensure stable and reliable quality by reasonable design scheme, and meet marketing requirements.
2.Compact size and light weight by superior alloy material.
3,Good quality performance, For ease of fitment ,Superior lifting capacity.
4. Long life with superior seal kits .
5. Working pressure 2500-3000 psi.
6. Lifting capacity can be up to 25ton by reasonable lifting capacity and right mounting ways
7.All stages diameter :
110/90/70/50
91/72/53
91/75/60/45
| MODEL | STROKE | A | B | C | D | E | F | G | H | L | kgs |
| 7 TONS | |||||||||||
| HTC-07833 | 78" | 35.5" | 3.75" | 2" | 1.063" | 2.25” | 1.25" | 6.5" | 1.25" | 7" | 37 |
| HTC-09033 | 90" | 39.5" | 3.75" | 2" | 1.063" | 2.25” | 1.25" | 6.5" | 1.25" | 7" | 41 |
| HTC-10833 | 108" | 45.5" | 3.75" | 2" | 1.063" | 2.25” | 1.25" | 6.5" | 1.25" | 7" | 46 |
| 12 TONS | |||||||||||
| HTC-07843 | 78” | 34.75” | 4.4” | 2” | 1.063” | 2.25” | 1.5” | 7.5” | 1.5” | 7” | 48 |
| HTC-09043 | 90” | 38.75” | 4.4” | 2” | 1.063” | 2.25” | 1.5” | 7.5” | 1.5” | 7” | 52 |
| HTC-10843 | 108” | 44.75” | 4.4” | 2” | 1.063” | 2.25” | 1.5” | 7.5” | 1.5” | 7” | 59 |
| HTC-12043 | 120” | 48.75” | 4.4” | 2” | 1.063” | 2.25” | 1.5” | 7.5” | 1.5” | 7” | 64 |
| HTC-14443 | 144” | 56.78” | 4.4” | 2” | 1.063” | 2.25” | 1.5” | 7.5” | 1.5” | 7” | 74 |
