5" bore x 21.5" stroke Dump Hoist Hydraulic Cylinder
- group name
- Dump Trailer Cylinder
- Min Order
- 100 piece
- brand name
- Zhongxin+Hydraulic Cylinders+Manufacturer
- model
- 5*2*21.5
- Nearest port for product export
- Qingdao
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FCA, Express Delivery
- Acceptable payment methods
- T/T, L/C, D/P D/A, Westem Union, Cash
- update time
- Mon, 09 Sep 2024 12:38:27 GMT
Paramtents
Color Black
Warranty 12 Months
Rod Type Chrome Plated
Design Welded
Action Double Acting
Pressure 3500PSI
Rod End Pin Hole
Weight 78lbs
Packging & Delivery
-
Min Order100 piece
Briefing

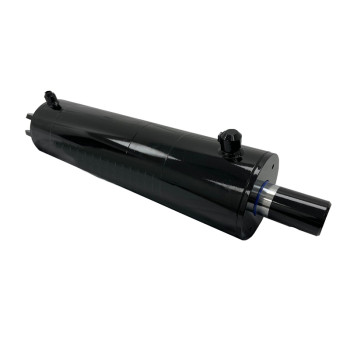

Hydraulic Cylinder for Dump Trailer 5" Bore x 21.5" Stroke, Double Acting 3500 PSI Trailer Hoist Hydraulic Cylinder
Detailed
PRODUCT DESCRIPTION
Dump trailer hoist hydraulic cylinder
Applications: Excellent fit for lifting systems in a variety of dump trailers.
Tube: High tensile honed cold drawn tube.
Rod: high-tensile ground and polished hard chrome-plated rod.
Gland: Precision threaded gland with wear rings for long life.
Piston: High tensile steel for heavy-duty applications.
Base ends: High tensile welded steel end mounts.
Piston seals: top-quality five-component compact seals for excellent performance.
Pressure: 3500 PSI Color: Black.
|
SKU
|
5X15.75
|
5X20
|
5X21.5
|
|
OD(INCH)
|
5.5"
|
5.5"
|
5.5"
|
|
Bore(Inch)
|
5"
|
5"
|
5"
|
|
Stroke(Inch)
|
15.75"
|
20"
|
21.5"
|
Rod(Inch) | 2" | 2" | 2" |
Port Size | SAE6 | SAE6 | SAE7 |
Pin(Inch) | 0.63" | 0.63" | 0.63" |
Retracted(Inch) | 23.5" | 27.5" | 29.37" |
Extended(Inch) | 39.25" | 47.5" | 50.87" |
Pressure(PSI) | 3500 | 3500 | 3500 |
Oil Volume(Quarts) | 5.36 | 6.8 | 7.31 |
Column Load(LBS) | 57,000 | 57,000 | 57,000 |
